Help! I am building a Cyboard II

[salvogendut]

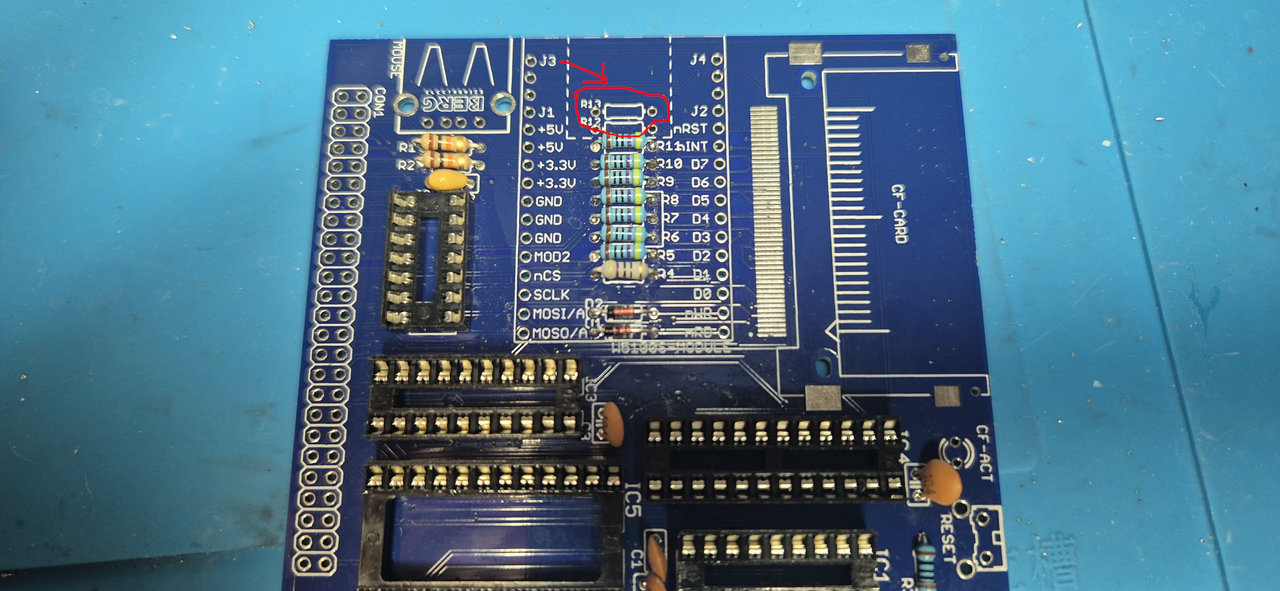

I have started to assemble a Cyboard II (from https://github.com/salafek/cyboard-for-cpc) and I can see in the BOM  that there are two elements R12 and R13 that are marked as 'Jumpers'. Since the images on github have a WS5100 covering that part, does anybody know how should I jumper these? If at all? See my board under contruction with the area marked in red where these jumpers should be

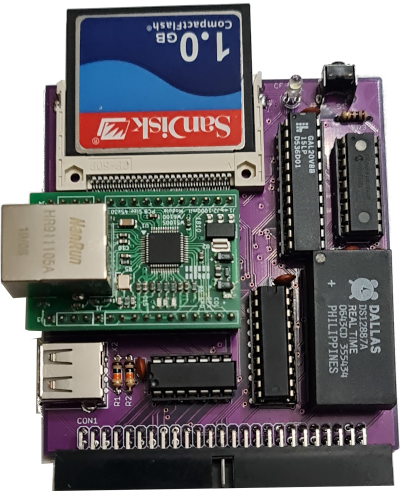

The finished board as it appears in github

[robcfg]

As the value for R12 and R13 is 0 ohm, and they are labeled as "jumper", I thin it means just connect it with a piece of wire.

If you have some resistor legs cut, provided they are long enough, you can solder that piece of metal instead of a cable.

[salvogendut]

I see! Thanks for the heads up!

[Prodatron]

thanks and cool to see more and more of this great hardware!

[d_kef]

As the value for R12 and R13 is 0 ohm, and they are labeled as "jumper", I thin it means just connect it with a piece of wire.

If you have some resistor legs cut, provided they are long enough, you can solder that piece of metal instead of a cable.

That's the way to go indeed!
If you have any more questions just contact me.

Edit: By the way, it's Cyboard not Cyboard II. Unless you add something to the design and make it Cyboard II.😉

d_kef

[salvogendut]

As the value for R12 and R13 is 0 ohm, and they are labeled as "jumper", I thin it means just connect it with a piece of wire.

If you have some resistor legs cut, provided they are long enough, you can solder that piece of metal instead of a cable.

That's the way to go indeed!
If you have any more questions just contact me.

Edit: By the way, it's Cyboard not Cyboard II. Unless you add something to the design and make it Cyboard II.😉

d_kefHey

As the value for R12 and R13 is 0 ohm, and they are labeled as "jumper", I thin it means just connect it with a piece of wire.

If you have some resistor legs cut, provided they are long enough, you can solder that piece of metal instead of a cable.

That's the way to go indeed!
If you have any more questions just contact me.

Edit: By the way, it's Cyboard not Cyboard II. Unless you add something to the design and make it Cyboard II.😉

d_kef

Thank you!!! I will definitely contact you! Also my apologies, it is indeed just a Cyboard! Not sure where that II came from
